Seria Vega

New generation laser cutters.

FASTER.
CLEANER.
HARDER

VEGA is a series of standing machines for laser engraving and cutting. The main task of this series is cutting textiles, therefore, after an in-depth study of market trends, it has been equipped with many useful functions and improvements. The speed of 1000 mm / sec provides fantastic results. The funnel-type work table has a drawer underneath, which is used to collect small pieces cut by the machine. Thanks to unique solutions, the machine allows you to cut long, large and thick pieces of material.

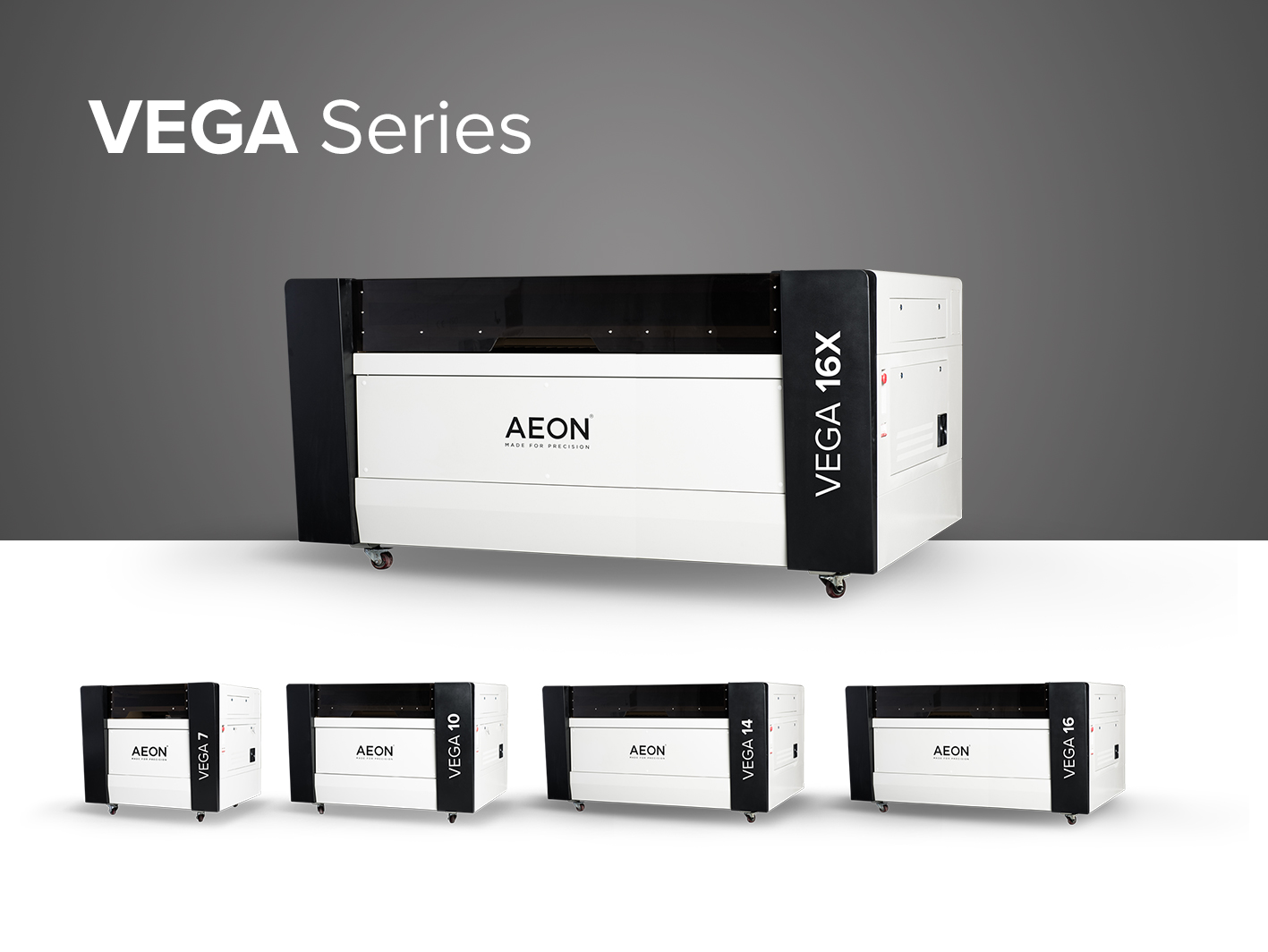

  • Vega Series - dimensions:

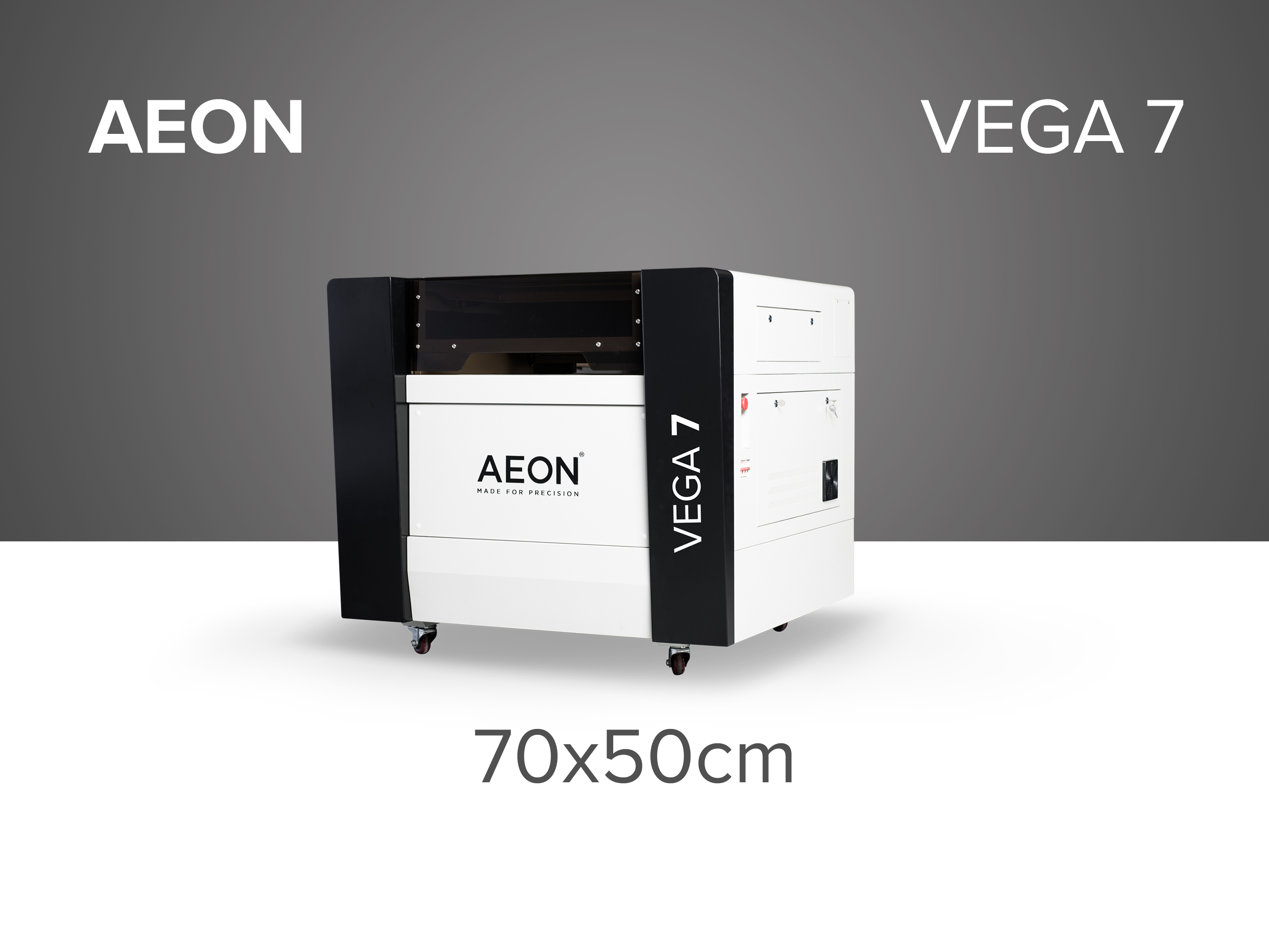

  • Vega 7 - 70x50cm.
  • Vega 10 - 100x70cm.

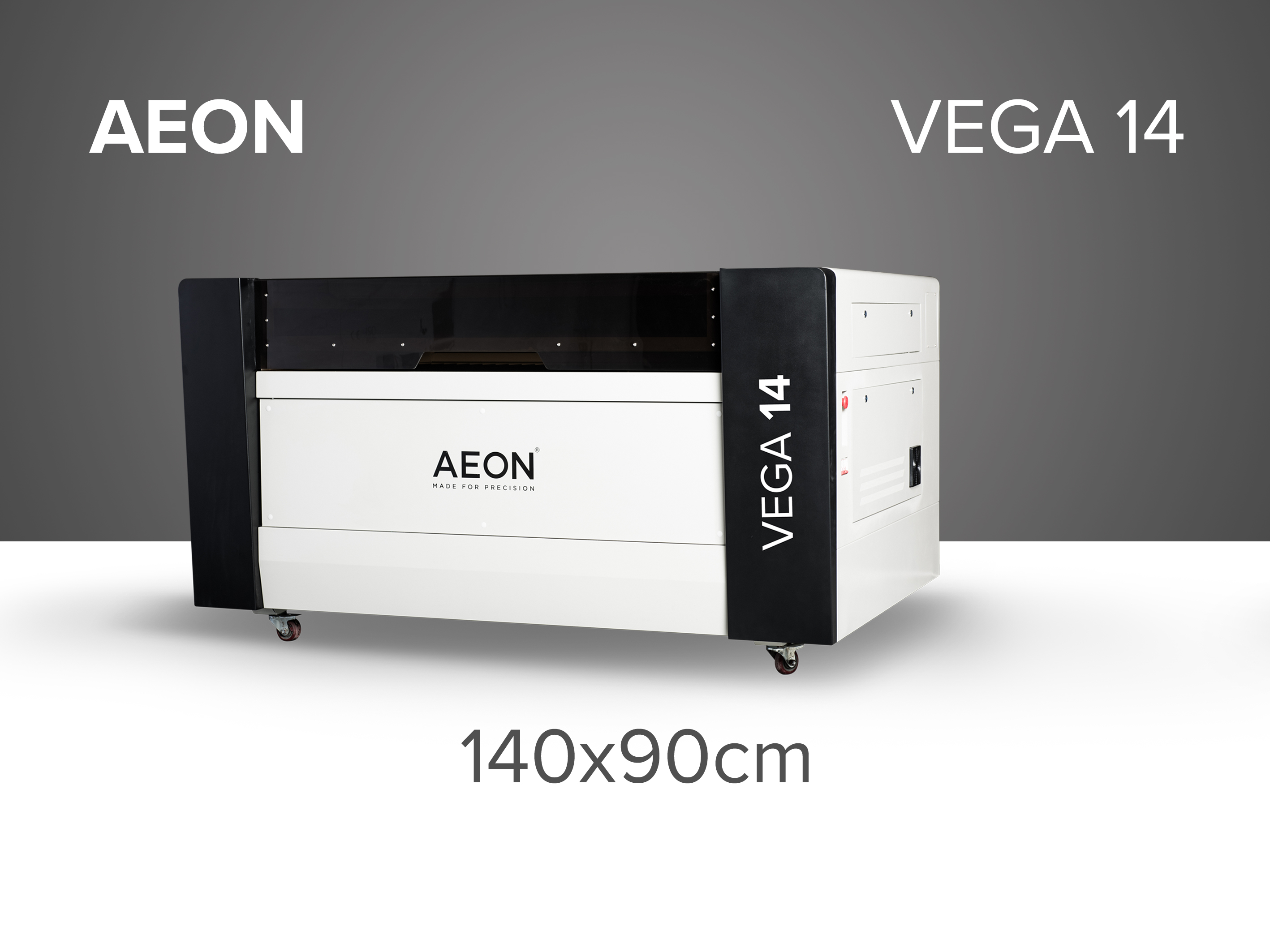

  • Vega 14 - 140x90cm.

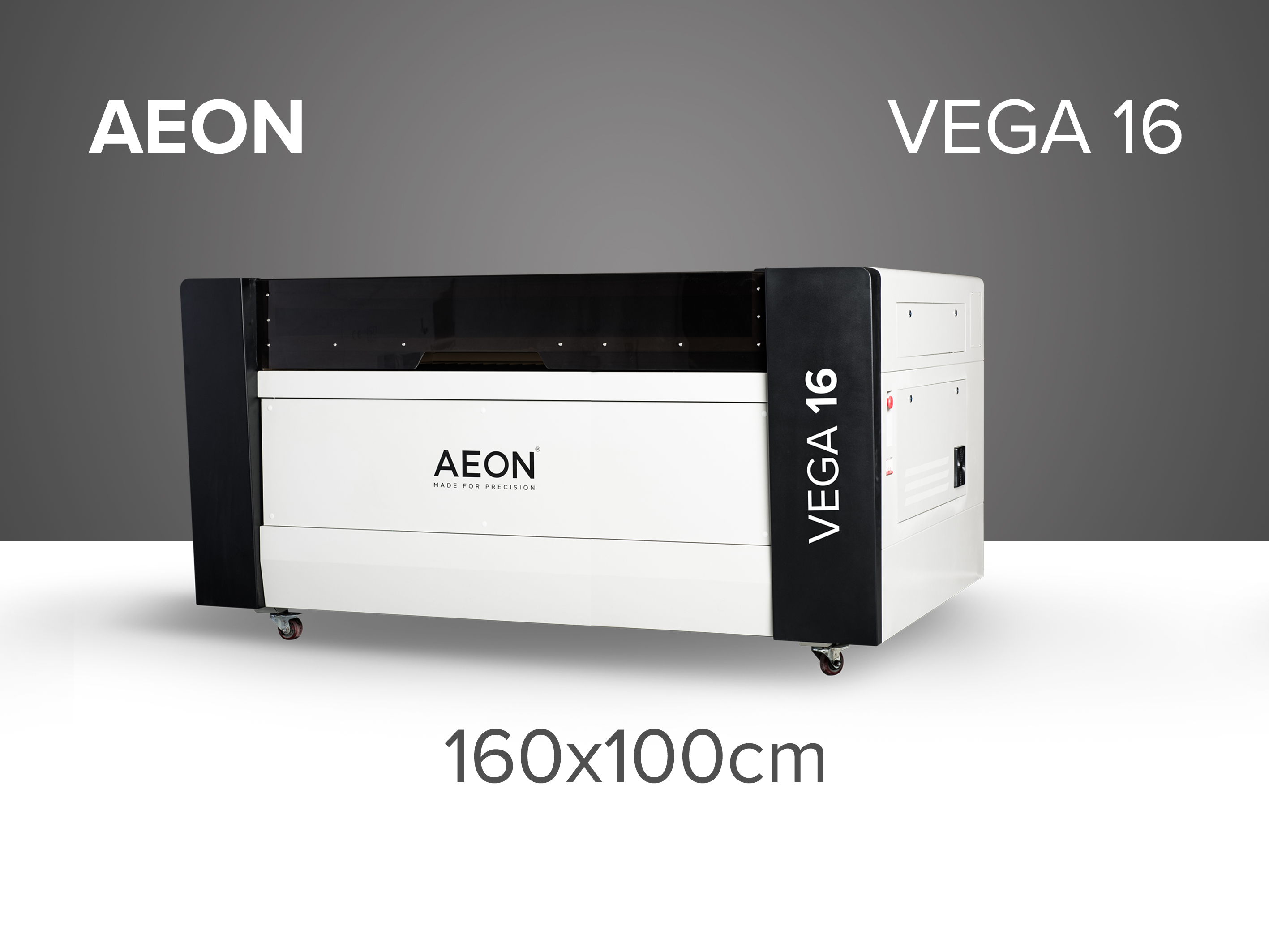

  • Vega 16 - 160x100cm.

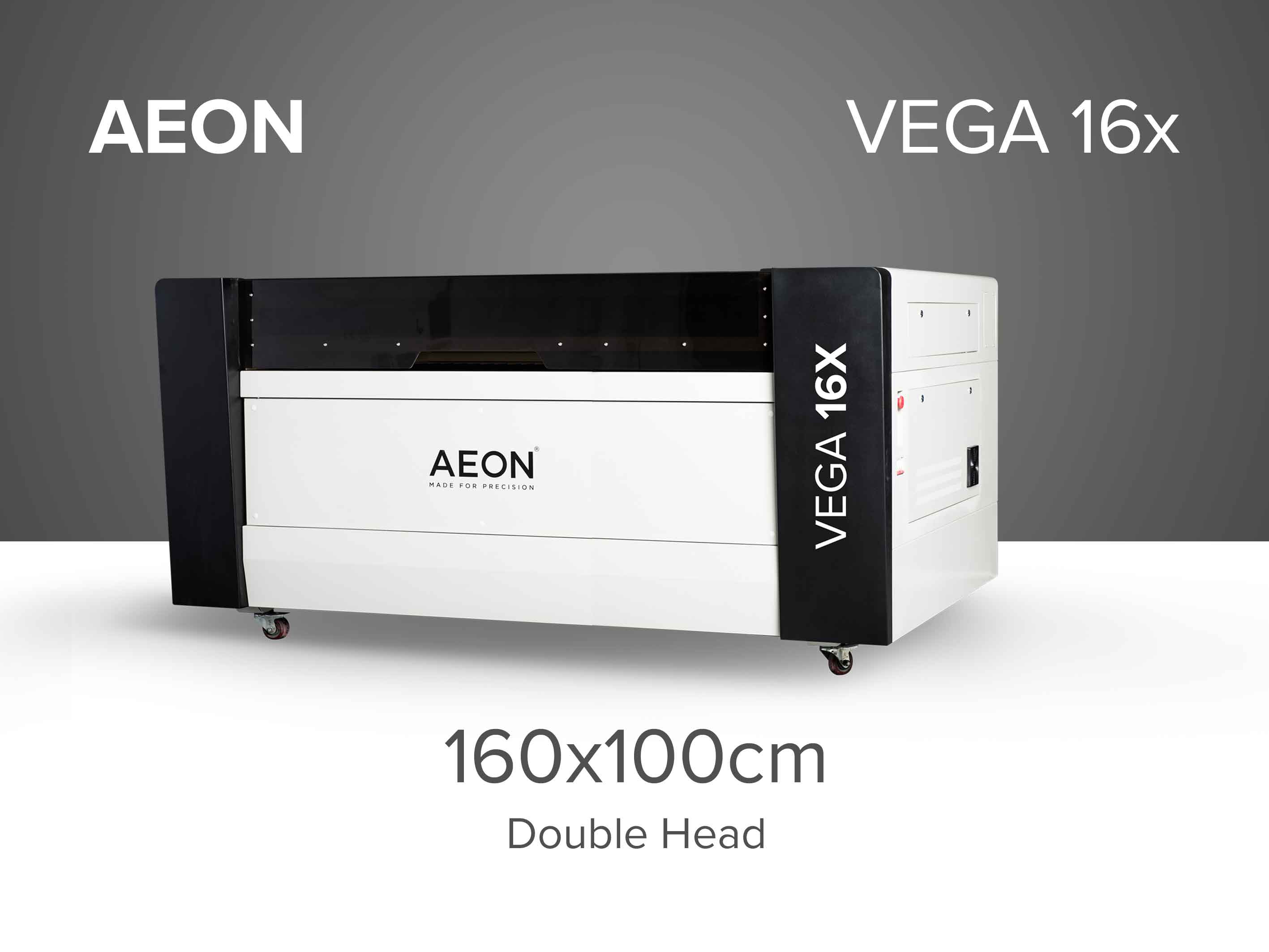

  • Vega 16x - 160x100cm with a double head.

    All products from the VEGA series with a glass laser tube can work with powers from 50 W to 150 W. You can also choose a metal RF laser tube. Please contact us for more information.

  • *If you are looking for an up / down table check the NOVA series.

Technical specifications:

Model VEGA 13 VEGA 15
 VEGA 16
Working area: 1300 mm*900 mm 1500 x 900 mm 1600 x 1000 mm
Machine size: 1380*1920*1125mm 1418*2020*1125mm 1480*2120*1125mm
Available powers: 80-150W 80-280W
Laser tube: Glass CO2
Table adjustment in the Z axis: 200 mm
Machine net weight: 430 kg  480 kg  530 kg
Machine weight with packaging: 520 kg  590 kg  630 kg
Package size: 1470*1920*1240mm 1470*1920*1240mm 1650*2220*1240mm
Voltage: 220V AC single phase
Engraving speed: up to 1000 mm/s
Cutting speed: 680 mm/s
Cutting thickness: 0-30mm
Min size of the engraved object: Font 1.0mm*1.0mm
Accuracy: 4000 DPI
Software: RD works/Aeon ProSMART
Supported graphic formats: DSP/PLT/BMP/DXF/AI/DWG etc.
Compatible software: CorelDraw/Photoshop/AutoCAD
Red point positioning: Tak
Smart rotary device: Opcja
Autofocus: Tak
WiFi: Tak
Product catalog for download

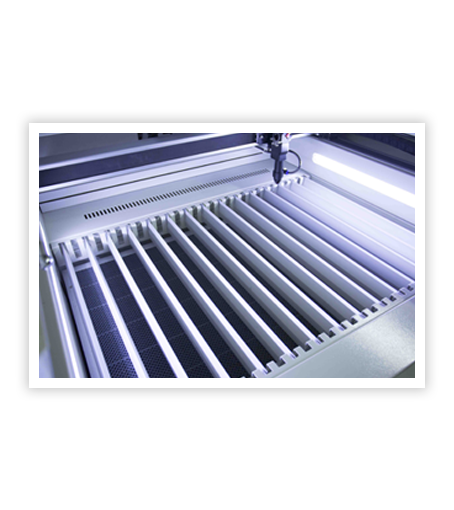

Clean Pack Design

The biggest problem related to working with laser devices are dust, fumes and particles produced during processing, which deteriorate the results of work and slow down the machine's operation. Clean Pack technology protects all mechanical parts and ensures the maintenance of perfect results, high speed of work and extends the life of the equipment.

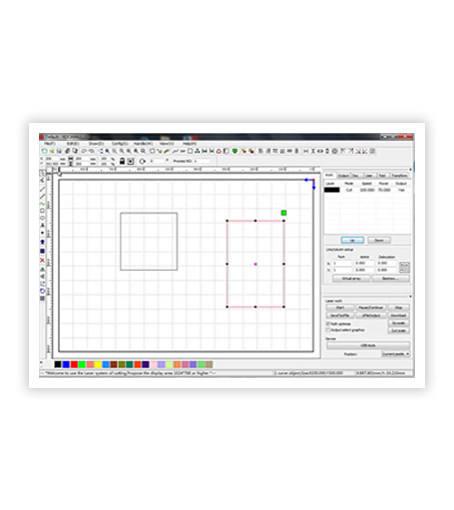

Software AEON PROSMART

The AEON ProSMART software is user-friendly and has convenient operating functions which make the operation of the machine even easier. The software supports all available file formats and allows you to work directly with programs such as CorelDraw, Illustrator or AutoCAD. You can also set a direct print command using the keyboard shortcut: CTRL + P.

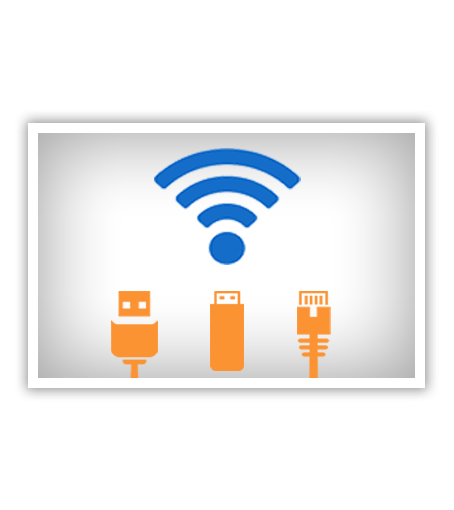

Multi-Cummunication

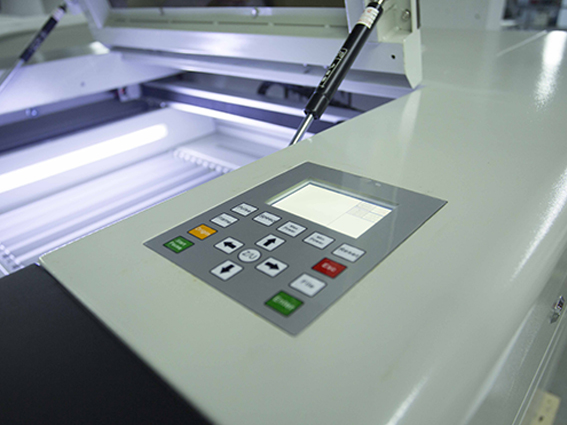

The VEGA series was developed based on a high-speed multi-communication system. You can connect to your machine via WiFi, USB cable, via LAN, or by sending data via a USB flash drive. The devices have an internal memory with a capacity of 256 MB, an easy-to-use panel and color display. You can work on it even offline, and when there is a power cut, the device will go into stop mode without losing data.

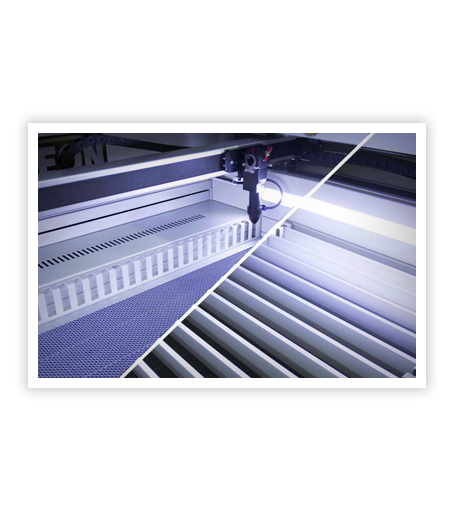

Multifunctional Work table

Depending on the material used, the appropriate work table should be selected. The VEGA series has a honeycomb table and a knife table as standard. The honeycomb table creates a vacuum. Thanks to the easy access, you can easily place the long materials.

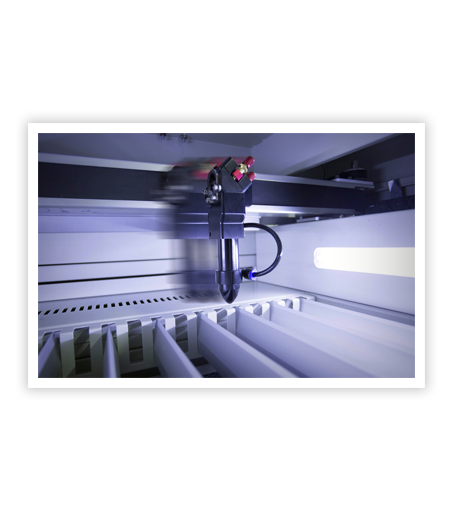

Faster than others

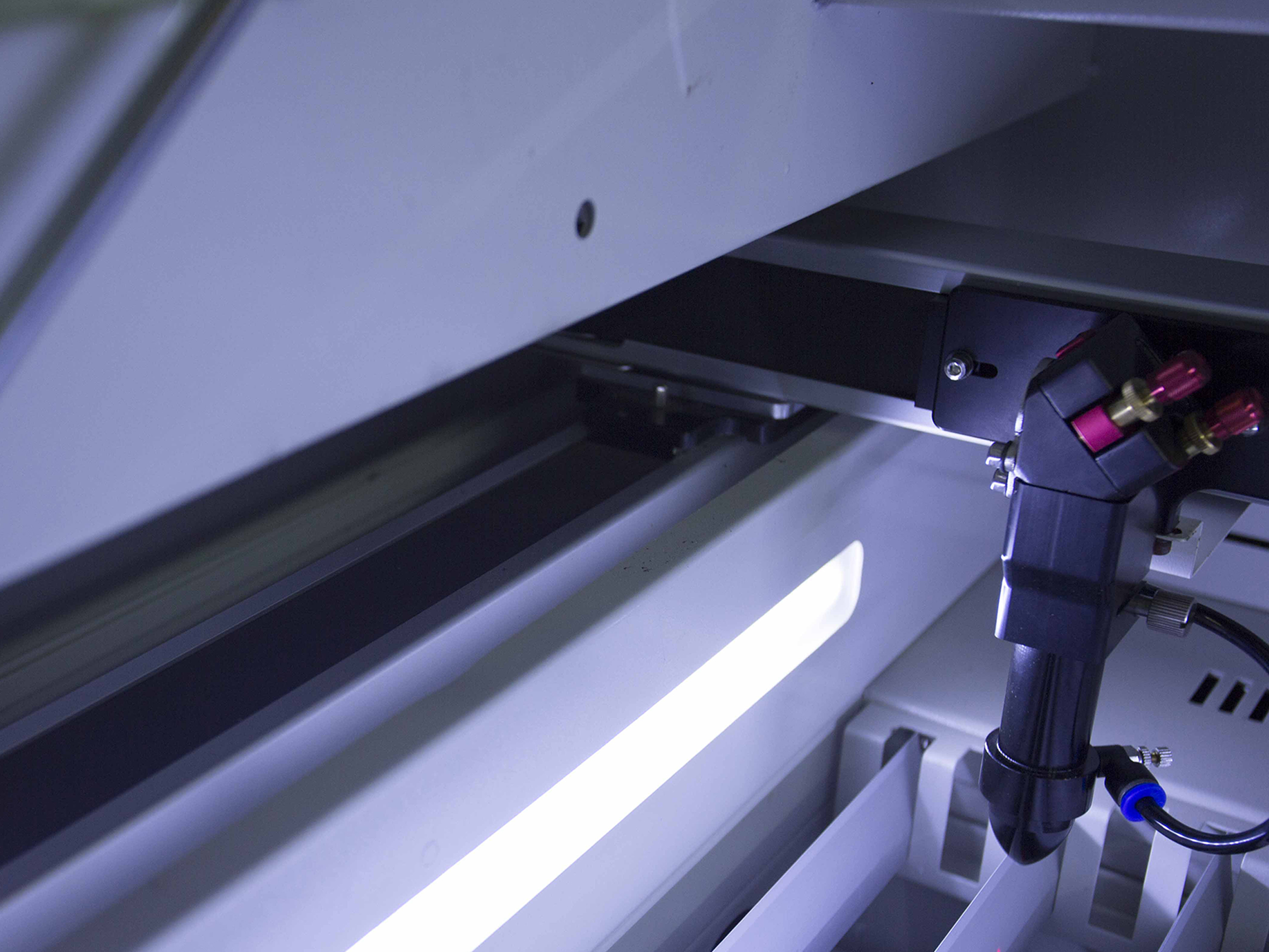

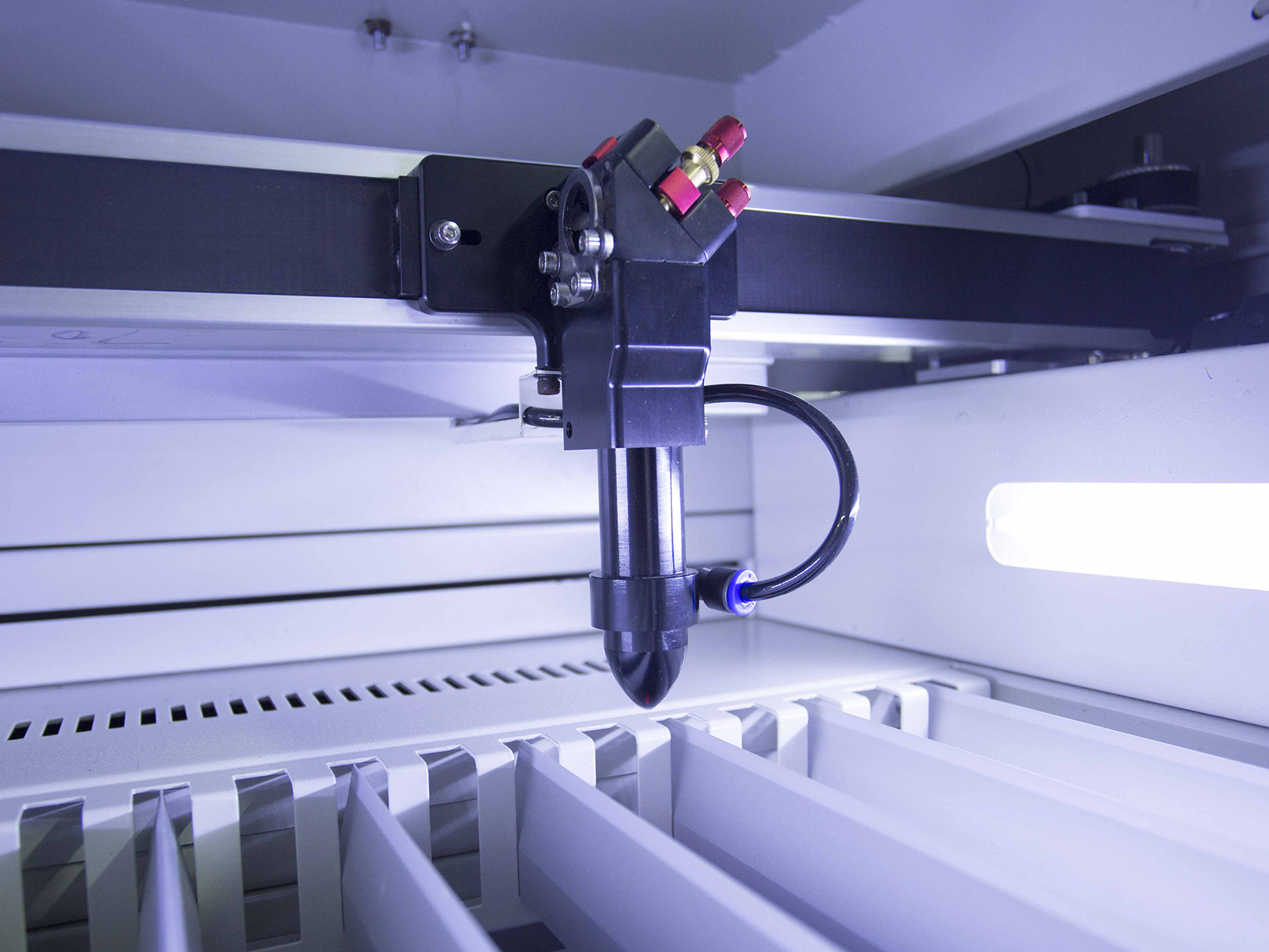

The creators of the VEGA series designed the most effective style of work. Thanks to high-speed digital stepper motors, linear guides and Japanese bearings, the laser achieves engraving speeds of up to 1 m / s, and the cutting speed can be up to 300 mm / s with an acceleration of 1.5 G. Undoubtedly, this device is the best choice on the market!

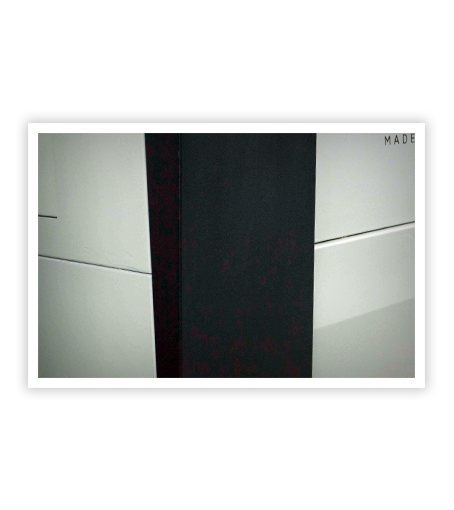

MODERN, DIVIDED BODY

The body can be separated into two parts, which allows it to be transferred through the 80 cm door. The internal LED lighting on the left and right side of the machine provides a very bright light.
