Features
Equipped with enchanced machine body, hybrid stepper motors and a newly designed closed rail system, Elite is ready to take your laser engraving and cutting business to the next level. It is quite simple, the less time you spend in front of the laser, the sooner the investment will pay off! Get ready to take off with a maximum engraving speed of up to 1200mm / s!
∇ SUPER STRONG, FULLY ENCLOSED MACHINE BODY
ELITENOVA is built like a tank. The main structure is equipped with a steel tube, which provides a lot of power. The whole thing has been fully sealed to guarantee work safety.∇ CLEAN PACK DESIGN – WHOLE OPTIC AND GUIDE RAIL CLEAN

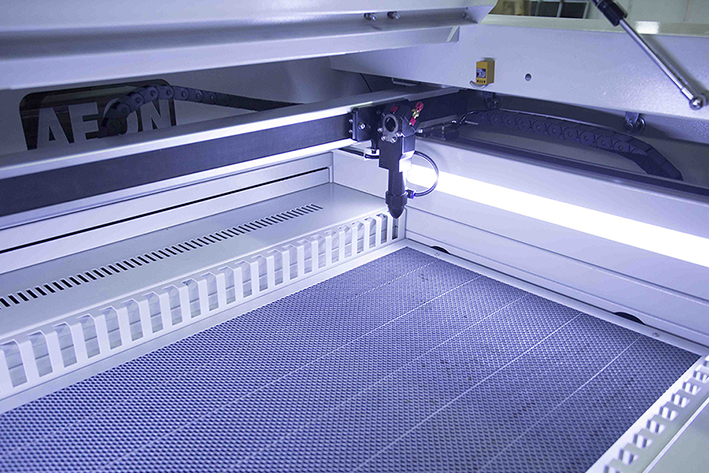

Aeon Laser’s signature clean pack technology has taken the next step in the evolutionary process. Not only are the linear rails and bearing blocks enclosed (as in previous models), but protective curtains on the left and right side of the working area now prevent unwanted particles from the motion system as well as the optic path. These will greatly reduce the maintenance of the machine and enhanced the engraving outcome.∇ 1200 MM/SEC SCAN SPEED 5G ACCELERATION SPEED.
Aeon’s newly designed, lightweight laser head, paired with high speed, stepper motors, is sure to leave the competition in the dust. Experience an astonishing blur of acceleration with top speeds reaching up to 2000mm/sec.∇ ALL IN ONE DESIGN BUILT IN 5200 CHILLER, BLOWER AND AIR ASSIST.
Installing a large format laser in a confined space has never been more practical. Enjoy a clutter free workspace with a built-in 5200 water chiller, exhaust fan and air pump. All components are still easily accessible and can be removed for routine maintenance.∇ STREAMLINED RUIDA KEYPAD.

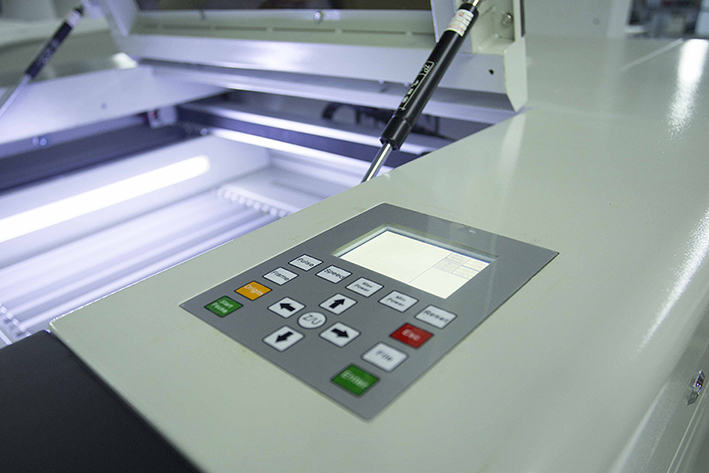

Another industry first is the all new redesigned Ruida controller, which brings commonly used functions right to the surface, for increased setup times and overall ease of use. You can even monitor amperage (mA) and water temperature right from the display screen.∇ INTEGRATED AUTOFOCUS

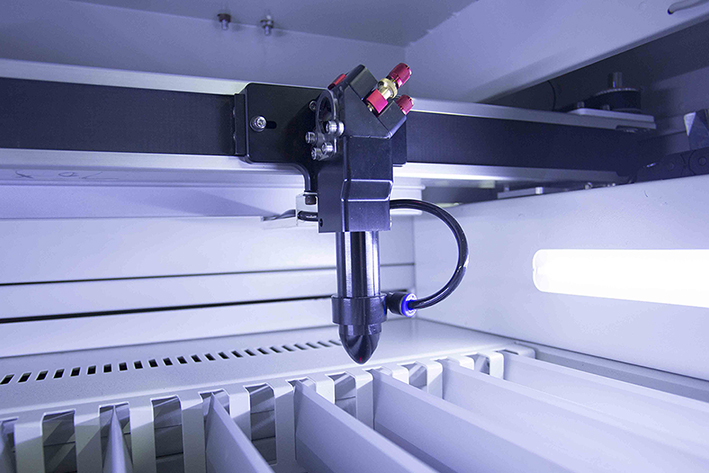

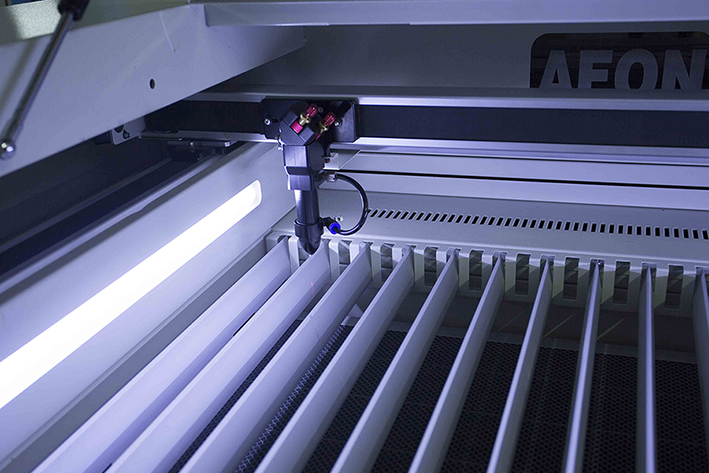

The newly designed laser head features an integrated auto focusing mechanism that is lightweight and a whole lot more reliable. It’s encapsulated right inside the nozzle, to shield it from smoke and debris. Say goodbye to collisions and gouged material.∇ ACTIVE AIRFLOW
Say goodbye to excessive soot buildup on your material and in your laser cabinet. A series of tiny fans are now used to force feed makeup air into the laser cabinet, which in turn improves how quickly smoke is evacuated from the system. The more air you move across the work table, the cleaner the results, which means less time scrubbing for you.∇ WEAK AND STRONG AIR SWITCHING
Double air assisting system. Weak air for engraving, strong air for cutting, automatically switching freely.Specs
| Model | Nova 10 | Nova 14 | Nova 16 | |
|---|---|---|---|---|
| Working Area | 700mm x 1000mm | 900mm x 1400mm | 1000mm x 1600mm | |
| Machine Size | 1210mm x 1500mm x 1025mm | 1410mm x 1900mm x 1025mm | 1510mm x 2100mm x 1025mm |
|
| Machine Weight | 450kg | 520kg | 620kg | |
| Machine Packing Weight | 540kg | 610kg | 710kg | |
| Crate Packing Size | 1310mm x 1600mm x 1125mm | 1510mm x 2000mm x 1125mm | 1610mm x 2200mm x 1125mm | |
| Laser Tube | Reci W1/W2/W4/W6 Premium CO2 Glass Tube | |||
| Input Voltage | 220V AC Single Phase | |||
| Frequency | 60 Hz | |||
| Engraving Speed | 0-1200mm/second | |||
| Cutting Speed | 0-300mm/Second | |||
| Locating Precision | <=0.01mm | |||
| Air Assist | 105W Built-In Air Pump | |||
| Cooling | Vapor Compression, built-in 5200 Water Chiller | |||
| Blower | 330W Built-In Exhaust Fan | |||
| Engraving Software | Lightburn, RDWorks | |||
| File Formats Supported | AI/PDF/SC/DXF/HPGL/PLT/RD/SCPRO2/SVG/LBRN/BMP/JPG/JPEG/PNG/GIF/TIF/TIFF/TGA | |||
| Compatible Software | CorelDraw/Photoshop/AutoCAD/InkScape/Any software that can export into the supported file formats | |||
| Worktable | Honeycomb + Blade table | |||
| Red Dot Positioning | Beam combiner | |||
| Built-in WIFI | Included | |||
| Auto Focus | Included | |||
| Add-Ons | 3-Jaw Chuck Rotary, 4 Wheel Roller Rotary, Fume Extractor | |||
Videos
Gallery
Ads-on
Smart Roller Rotary
Expand your capabilities with this versatile roller rotary device. Perfect for engraving bottles, champagne flutes, wine glasses, etc.
Bofa AD Base 2 Oracle
The AD Base 1 Oracle has been designed so that a number of manufacturer’s laser engravers can sit on top of the extractor, effectively doubling it up as a workstation.
Automatic flow control allows the user to pre-set correct flow rates, giving lower noise levels and helping further protect both the combined filter and the patented DeepPleat DUO pre-filter.
Automatic flow control allows the user to pre-set correct flow rates, giving lower noise levels and helping further protect both the combined filter and the patented DeepPleat DUO pre-filter.
Remote Control
Programming is a breeze with our advanced DSP digital control system or an optional wireless remote that puts all of the controls right in the palm of your hand.
Camera
Get a bird's eye view of your workspace right on your computer screen for quick and accurate placement of your design, so that you don’t have to measure (LightBurn upgrade required).
Rotary Chuck
Wait
Bofa AD Base Oracle IQ
The Intelligent Operating System (iQ) performs at two distinct levels. Operators benefit from the ease of operation and clarity of real-time information, the system also provides a cache of analytical data, enabling users to download performance and operating parameters for evaluation purposes.
Stand
Not just any old table will do. The R&D team put their signature on this sleek modern looking stand that is also on wheels for added convenience.
CO2 Laser Protective Goggles
Protect your eyes from infrared light radiation that can compromise your vision over time. Glasses are designed for use with CO2 lasers (10.6um) only.
