Features

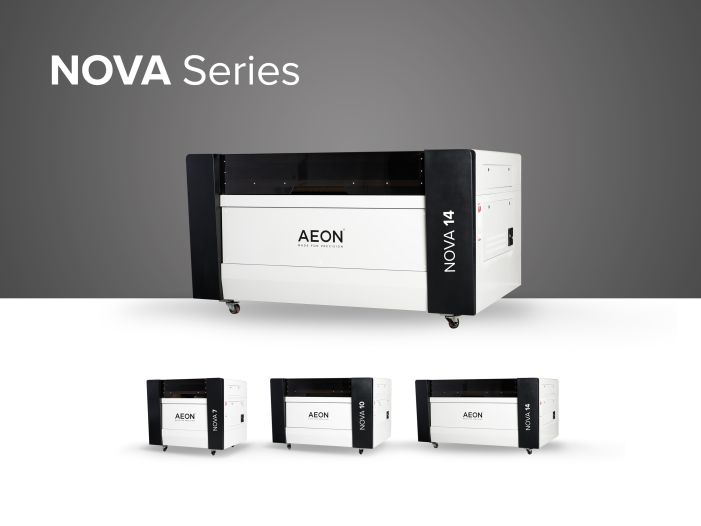

The AEON NOVA is a series of commercial standing laser engraving and cutting machine. It can accommodate larger sized materials and allows you to install more powerful laser tubes for cutting thick materials. Engraving speed is up to 1200 mm/s. Cleaning got very easy with a scrap collection drawer. Tiny fans force the air into the laser cabinet, which will improve how quickly smoke is evacuated from the machine. It has an auto sensing rotary port, located on the inside of the machine. With a divided body, you can install it everywhere. It will be the perfect machine for your business and it will bring you profit for sure!
∇ FASTER THAN OTHERS
The creators of the MIRA series designed the most effective style of work. Thanks to high-speed digital stepper motors, linear guides and Japanese bearings, the laser achieves engraving speeds of up to 1200 m / s, and the cutting speed can be up to 300 mm / s with an acceleration of 1.5 G. Undoubtedly, this device is the best choice on the market!∇ NO DUST AND FUMES
The biggest problem related to working with laser devices is dust, fumes and particles produced during processing, which deteriorate the results of work and slow down the machine's operation. Clean Pack technology protects all mechanical parts and ensures the maintenance of perfect results, high speed of work and extends the life of the equipment.∇ ALL-IN-ONE
All laser machines available on the market need an extraction fan, a cooling system and an air compressor to work efficiently. The new MIRA was equipped with these components already at the production stage, so there is no need to retrofit the workstation. Just put it on the table and go to work!∇ 2 WORK TABLE – TO ENGRAVE AND CUT

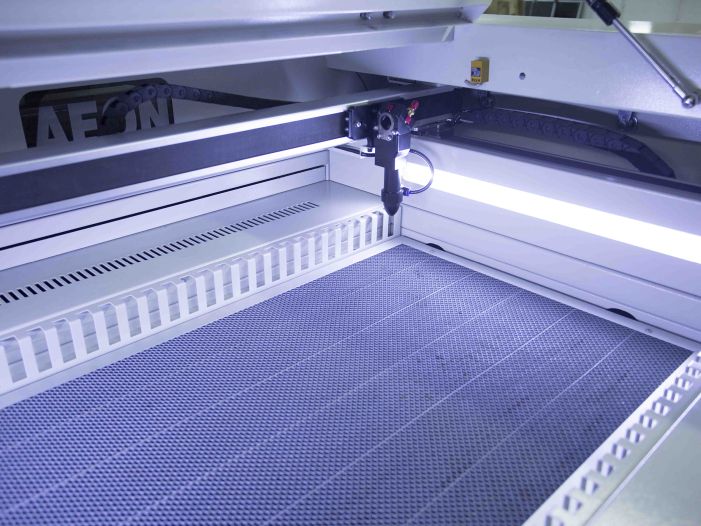

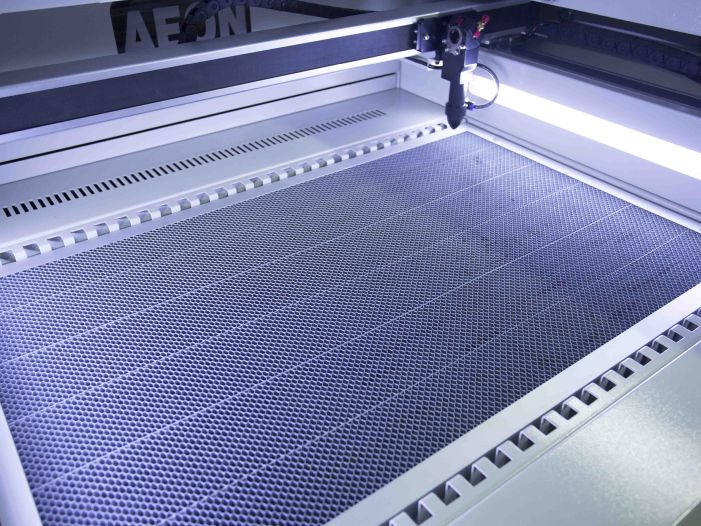

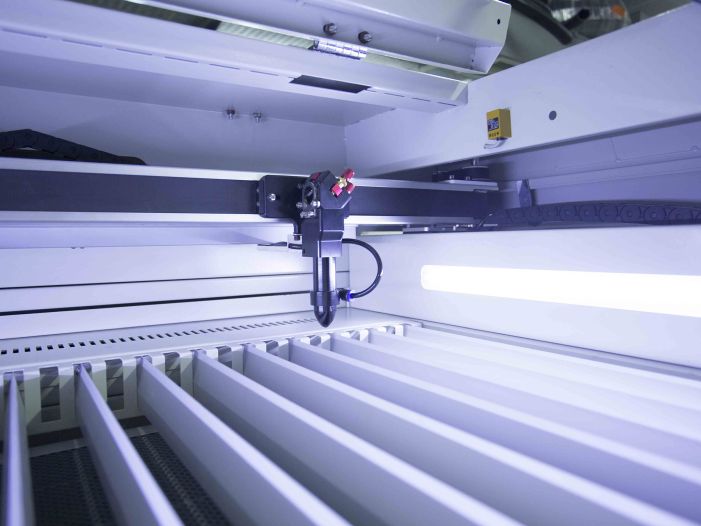

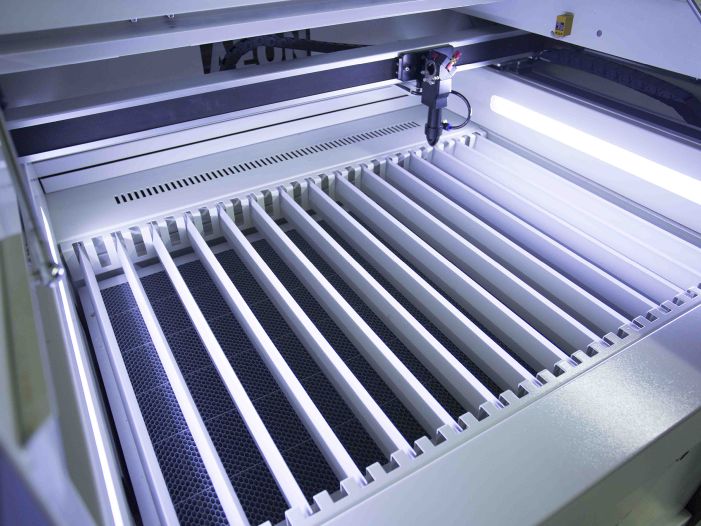

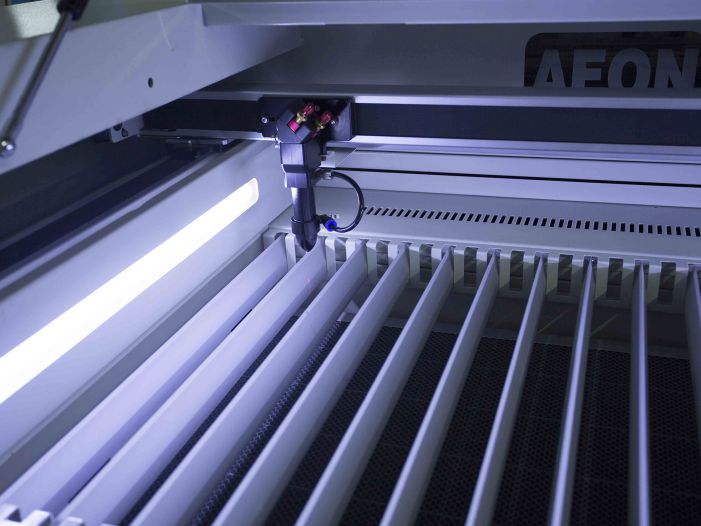

Depending on the material used, the appropriate work table should be selected. The MIRA series has a honeycomb table and a knife table as standard. The honeycomb table creates a vacuum. Thanks to easy access, you can easily place the long materials.∇ MULTI-COMMUNICATION

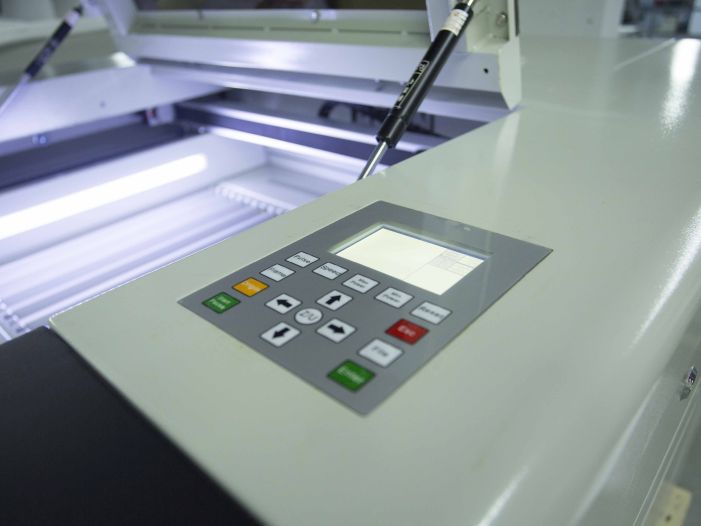

The MIRA series was developed based on a high-speed multi-communication system. You can connect to your machine via WiFi, USB cable, via LAN, or by sending data via a USB flash drive. The devices have an internal memory with a capacity of 256 MB, an easy-to-use panel and color display. You can work on it even offline, and when there is a power cut, the device will go into stop mode without losing data.∇ SMART ROTARY DEVICE
Choose a rotary chuck or a roller rotary and enjoy rotary engraving without problems.∇ MODERN, DIVIDED BODY
The body can be separated into two parts, which allows it to be transferred through the 80 cm door. The internal LED lighting on the left and right sides of the machine provides a very bright light.∇ SOFTWARES
TheRD WORKS software is user-friendly and has convenient operating functions which make the operation of the machine even easier. The software supports all available file formats and allows you to work directly with programs such as CorelDraw, Illustrator or AutoCAD. You can also set a direct print command using the keyboard shortcut: CTRL + P. Working well with popular Lightburn.Specs

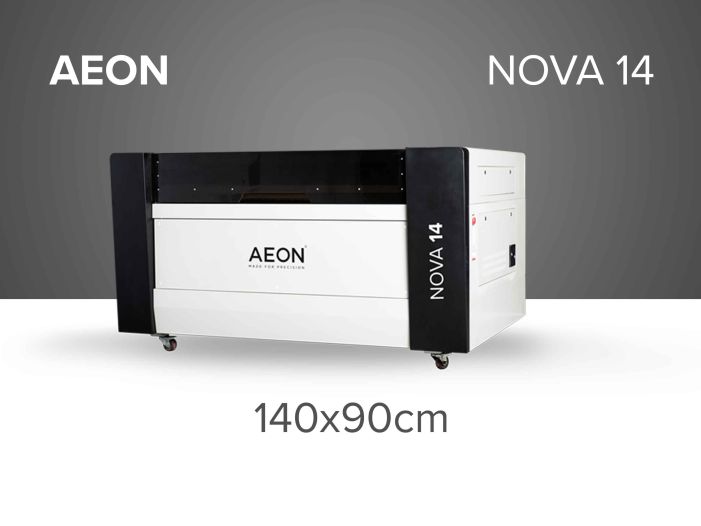

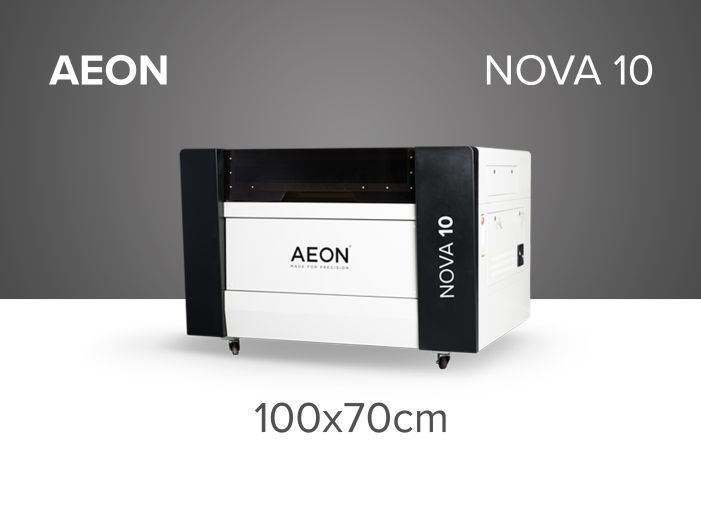

| Model | NOVA 7 | NOVA 10 | NOVA 13 | NOVA 14 | NOVA 16 |

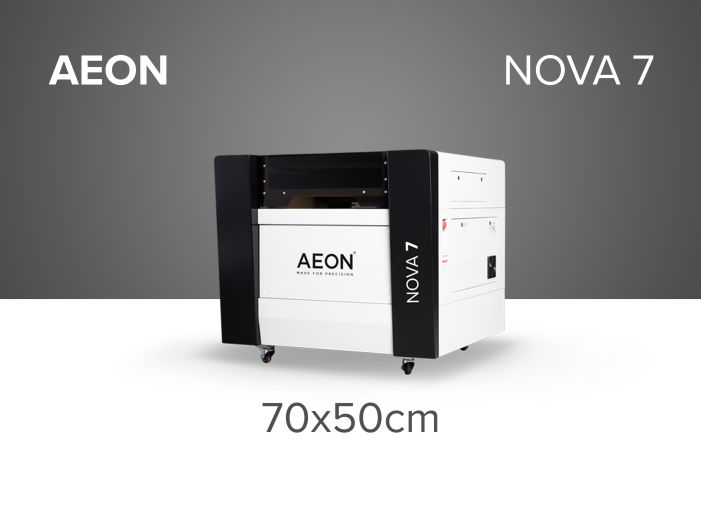

| Working area: | 700 mm*500 mm | 1000 x 700 mm | 1300 x 900 mm | 1400 x 800 mm | 1600 x 1000 mm |
| Machine size: | 1100*1230*1125mm | 1295*1520*1125mm | 1380*1920*1125mm | 1480*1925*1125mm | 1480*2120*1125mm |
| Available powers: |
80W-150W |
80-260W | |||
| Laser tube: |
Glass CO2 |
||||
| Table adjustment in the Z axis: |
200 mm |
||||
| Machine net weight: | 240 kg | 390 kg | 430 kg | 450 kg | 530 kg |
| Machine weight with packaging: | 310 kg | 470 kg | 520 kg | 540 kg | 630 kg |
| Package size: | 1200*1320*1240mm | 1470*1620*1240mm | 1470*1920*1240mm | 1570*2020*1240mm | 1570*2020*1240mm |
| Voltage: |
220V AC single phase |
||||
| Engraving speed: |
do 1200 mm/s |
||||
| Cutting speed: |
680 mm/s |
||||
| Cutting thickness: |
0-30mm |
||||
| Min size of the engraved object: |
Font 1.0mm*1.0mm |
||||
| Accuracy: |
4000 DPI |
||||
| Software: |
RD works/Aeon ProSMART |
||||
| Supported graphic formats: |
DSP/PLT/BMP/DXF/AI/DWG etc. |
||||
| Compatible software: |
CorelDraw/Photoshop/AutoCAD |
||||
| Red point positioning: |
Yes |
||||
| Smart rotary device: |
Optional |
||||
| Autofocus: |
Yes |
||||
| WiFi: |
Yes |
||||
Videos
Gallery
Ads-on
Smart Roller Rotary
Expand your capabilities with this versatile roller rotary device. Perfect for engraving bottles, champagne flutes, wine glasses, etc.
Bofa AD Base 2 Oracle
The AD Base 1 Oracle has been designed so that a number of manufacturer’s laser engravers can sit on top of the extractor, effectively doubling it up as a workstation.
Automatic flow control allows the user to pre-set correct flow rates, giving lower noise levels and helping further protect both the combined filter and the patented DeepPleat DUO pre-filter.
Automatic flow control allows the user to pre-set correct flow rates, giving lower noise levels and helping further protect both the combined filter and the patented DeepPleat DUO pre-filter.
Remote Control
Programming is a breeze with our advanced DSP digital control system or an optional wireless remote that puts all of the controls right in the palm of your hand.
Camera
Get a bird's eye view of your workspace right on your computer screen for quick and accurate placement of your design, so that you don’t have to measure (LightBurn upgrade required).
Rotary Chuck
Wait
Bofa AD Base Oracle IQ
The Intelligent Operating System (iQ) performs at two distinct levels. Operators benefit from the ease of operation and clarity of real-time information, the system also provides a cache of analytical data, enabling users to download performance and operating parameters for evaluation purposes.
Stand
Not just any old table will do. The R&D team put their signature on this sleek modern looking stand that is also on wheels for added convenience.
CO2 Laser Protective Goggles
Protect your eyes from infrared light radiation that can compromise your vision over time. Glasses are designed for use with CO2 lasers (10.6um) only.
